Location / Name:
Bowie MD, Prince George's County
Huntington (Bowie) Railroad Museum
Amtrak Northeast Corridor
The Pope's Creek Branch
GPS Coordinates: 39.007123, -76.779156 (museum)
Phone A/C: 301
Access by train/transit:
Bowie State MARC station if 1.1 miles north
This guide covers Bowie MD, a town on the old Pennsy mainline, now the Northeast Corridor. Bowie is Maryland's third largest incorporated city.
Bowie has a MARC station, kinda, it's a little north at Bowie State University. The next station going south is Seabrook.
Bowie is home to the Bowie RR Museum, AKA the Huntington RR Museum, and is centered around the old Pennsylvania Railroad Bowie tower and depot.
The Pope's Creek Branch splits off from the NEC in Bowie, and heads south to a couple of power plants. Back in the Pennsy, then PC, then Conrail days, the coal used come to the branch via Harrisburg PA and the Port Road down to Perryville MD, where it would head south to Bowie. Since CSX assumed control of the branch after the Conrail split-up in 1999, the coal has come from the south... Via CSX's Benning Yard on the east side of Washington DC, along MD 295 at US 50.
The interlocking was changed in 1984 to accommodate the
southbound freights, that is also probably when the NB signals were moved

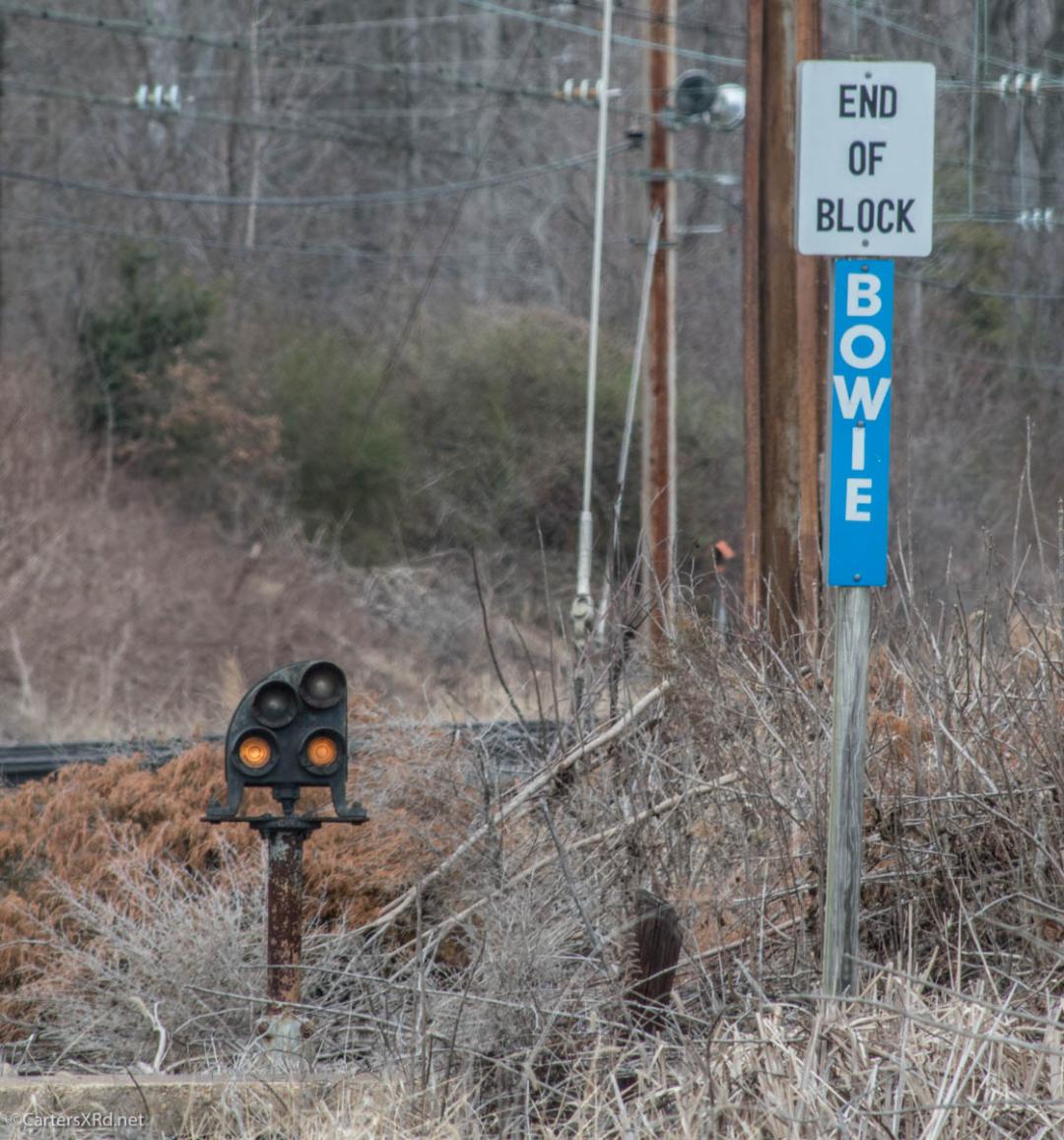

Signals around here are all Pennsylvania Railroad PL (position light) style signals, altho the ones of the corridor have been converted to colorized versions of them, and are usually referred to PCL's (Position Color Lights) to differentiate them from the B&O CPL's (Color Position Lights). One signal remains in it's original Pennsy form is the caution signal a few blocks down the Pope's Creek branch at Highbridge Street, and is a permanent all yellow Caution signal for the approach to the Wye.
For some interesting reading, here is a link to a study by the state on extending passenger service south from Bowie.
Websites and other additional information sources of interest for the area:
http://www.trainweb.org/oldmainline/misc1.htm Additional pictures of stuff around Bowie
http://www.trainweb.org/oldmainline/pa1.htm Pennsy's route from Washington to Baltimore
http://www.trainweb.org/oldmainline/ Index page
There are two fairly easy ways to get to Bowie. One is coming from either I-95 or the Baltimore-Washington Parkway from the west of Bowie via MD197. The other way is getting off the Capitol Beltway (I-495/I-95) at exit 20, the MD450 exit, and then look for the signs for MD564.
For the above map in PDF format, click here
Huntington Railroad Museum
GPS Coordinates: 39.007124, -76779157
For more info: http://wx2dx.net/rrmuseum/rr.html

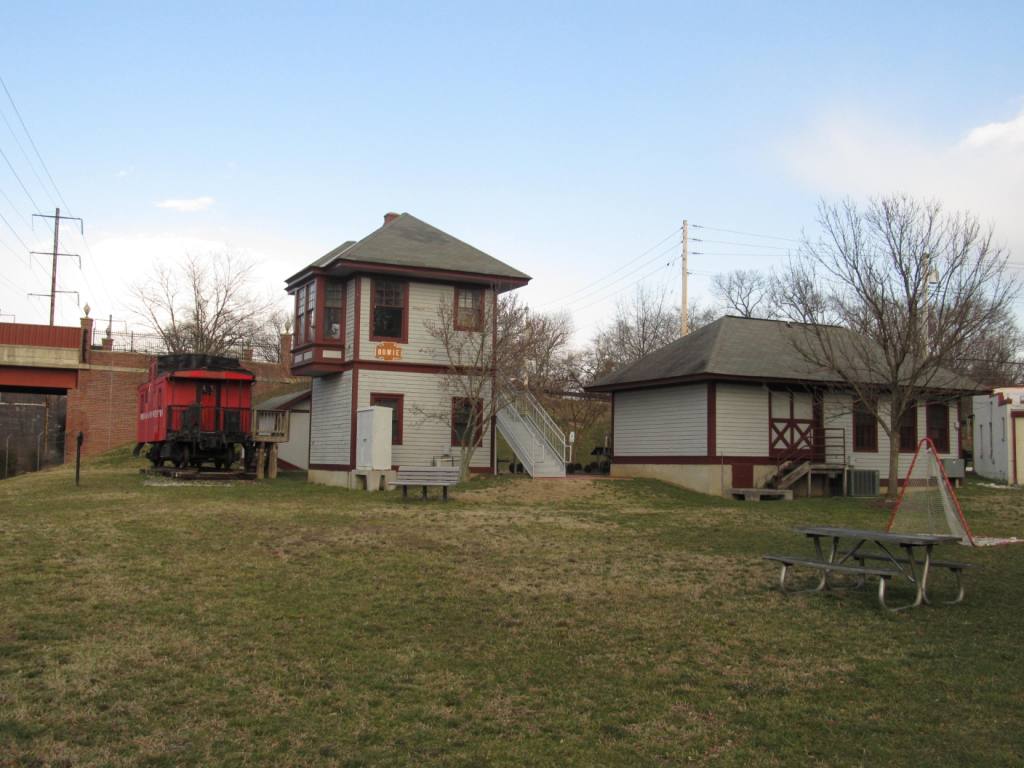

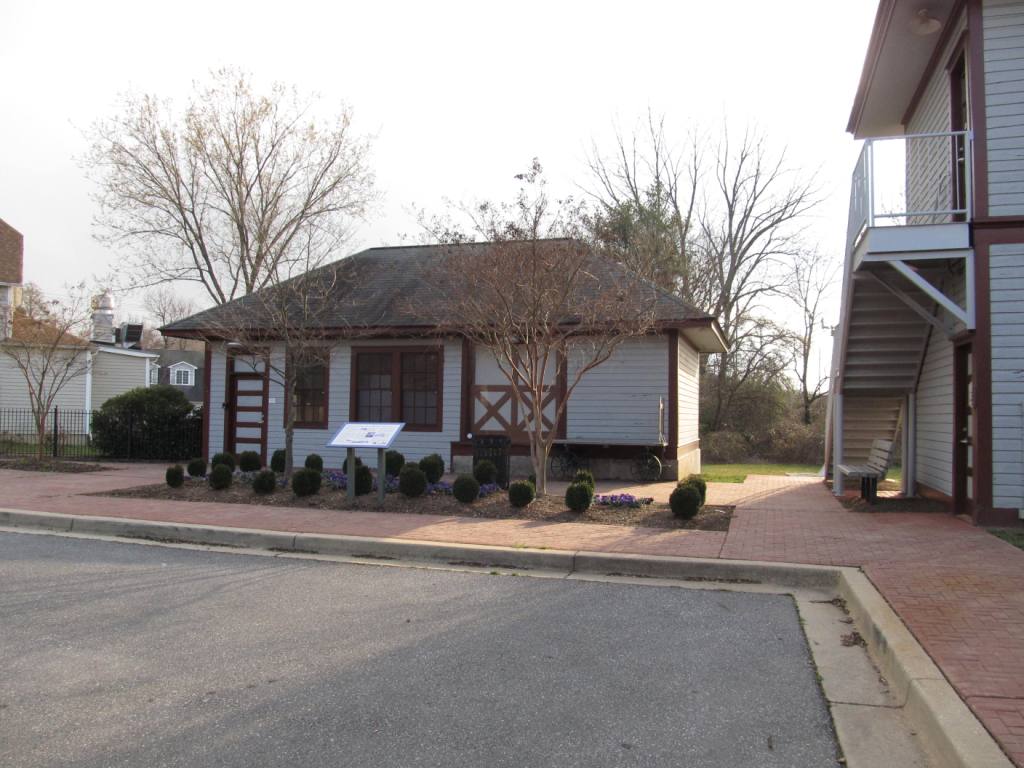

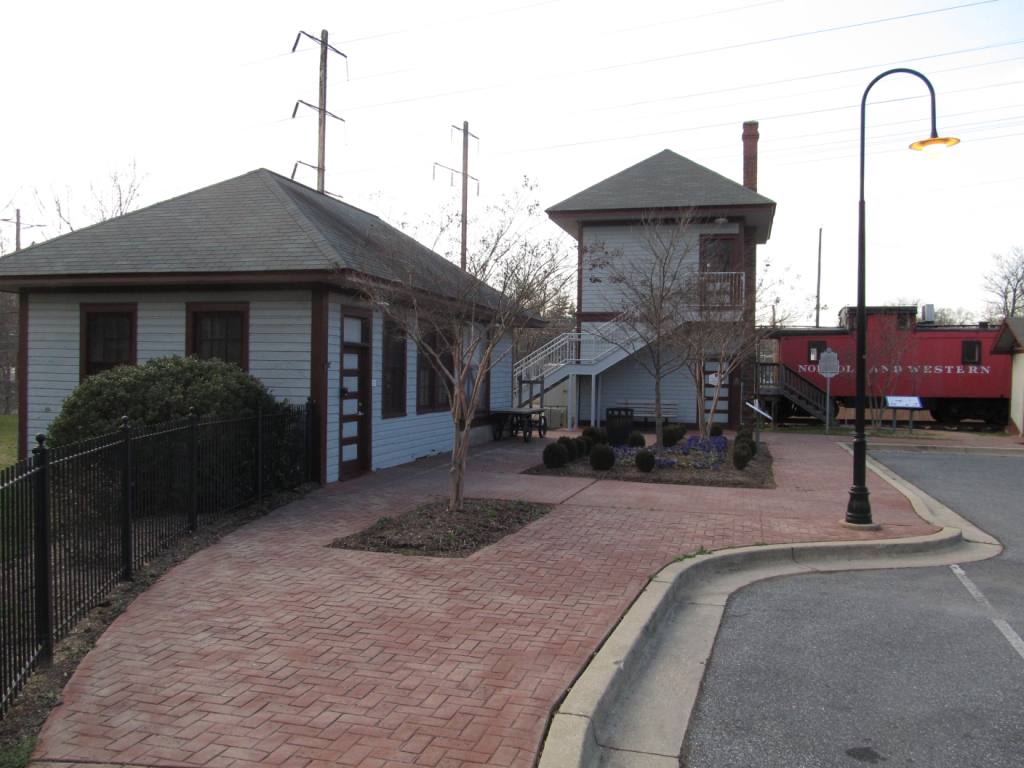

In the aerial view below, the green arrow points to the museum, which used to be the Bowie station until around 1989 when it was moved here. The museum is named after the original name for the town before it was renamed to Bowie in honor of the PB&W president of the same name.

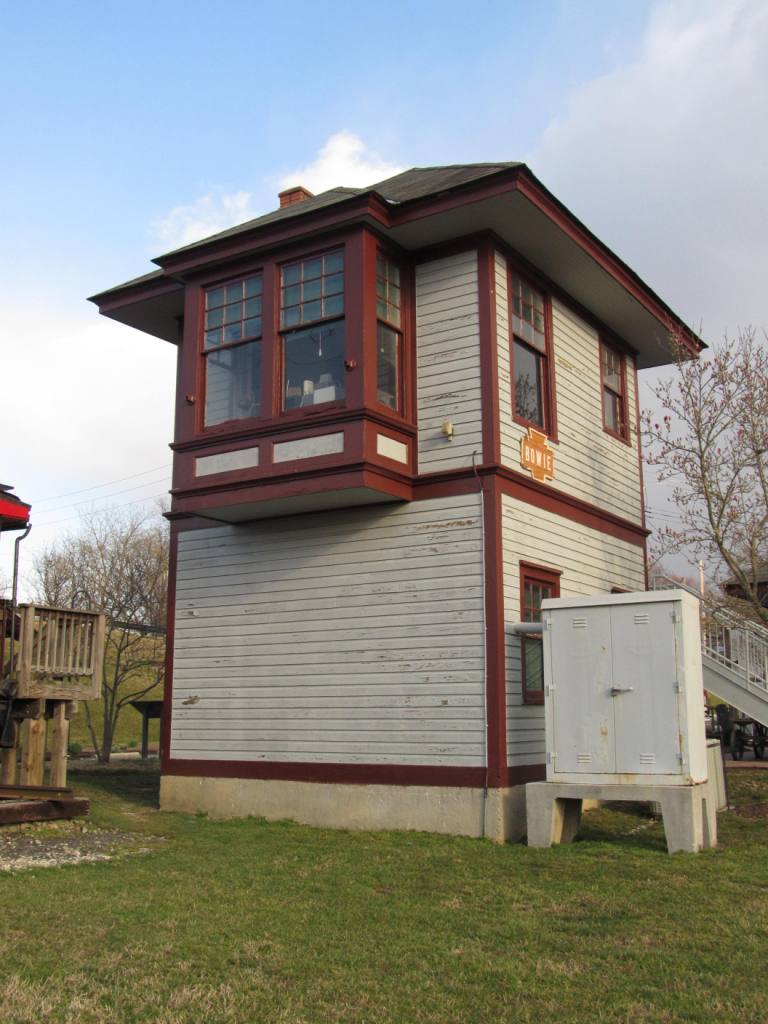

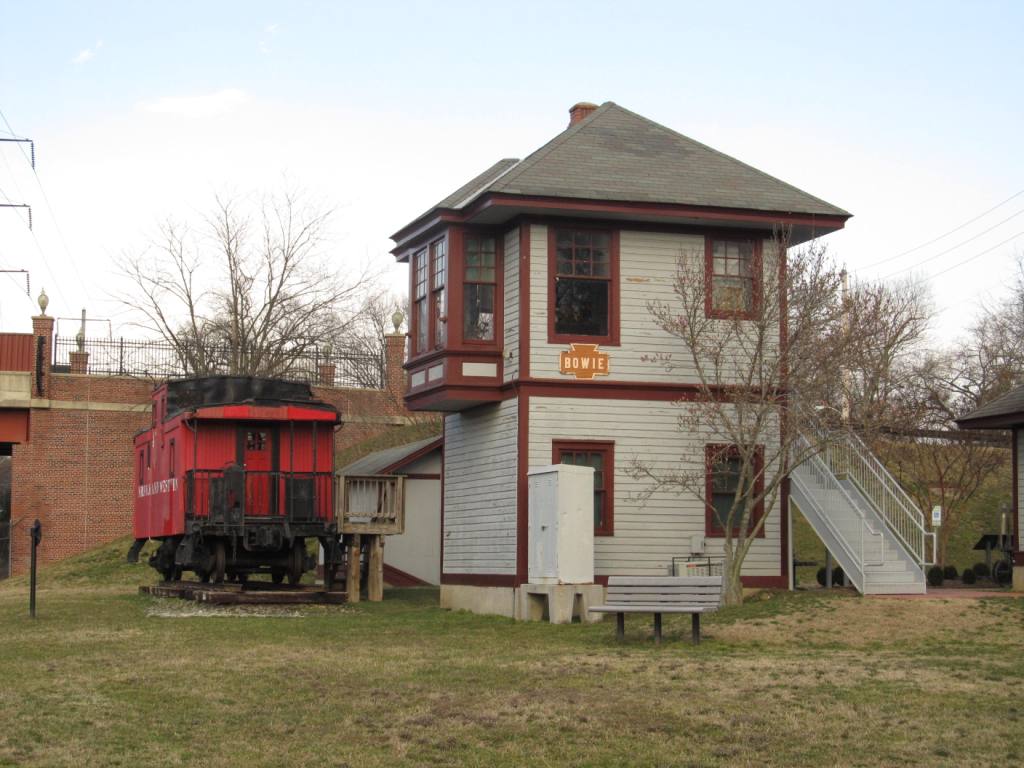

The red arrow points to where the tower used to be. The blue arrow points to where it is today.
Across the tracks from the dwarf PL signal is where the last Bowie "station" used to be, which can be seen in Jim's pictures below.

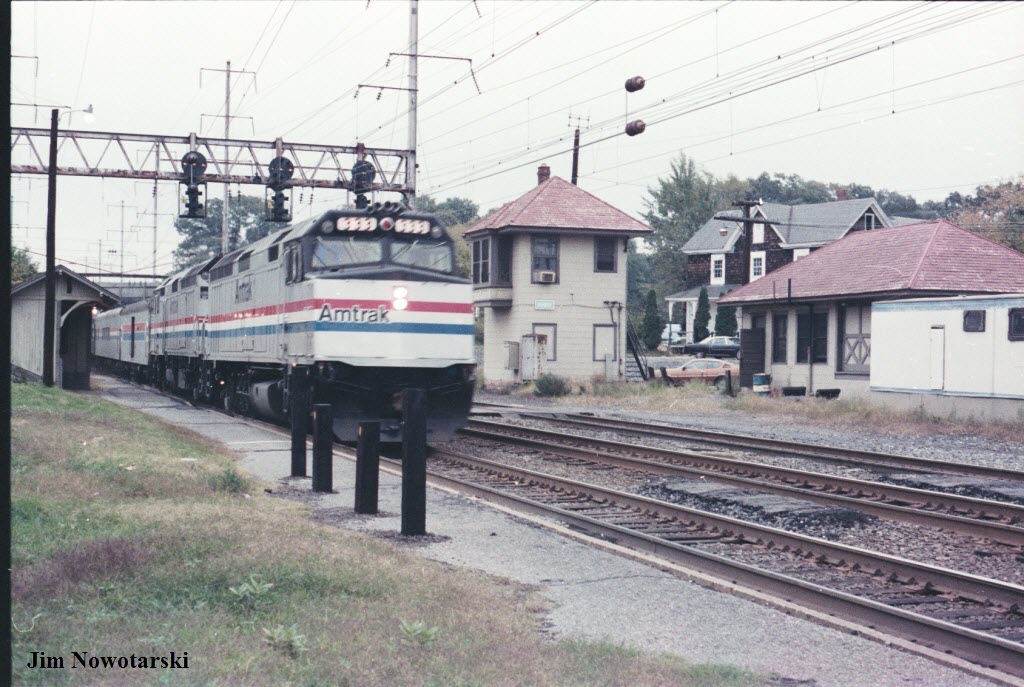

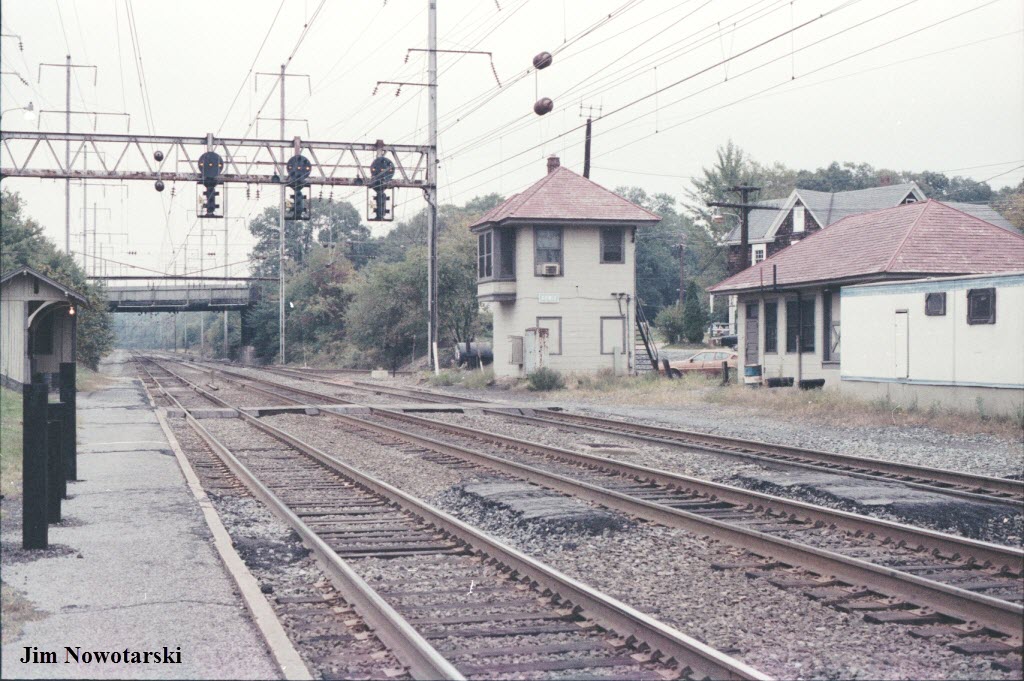

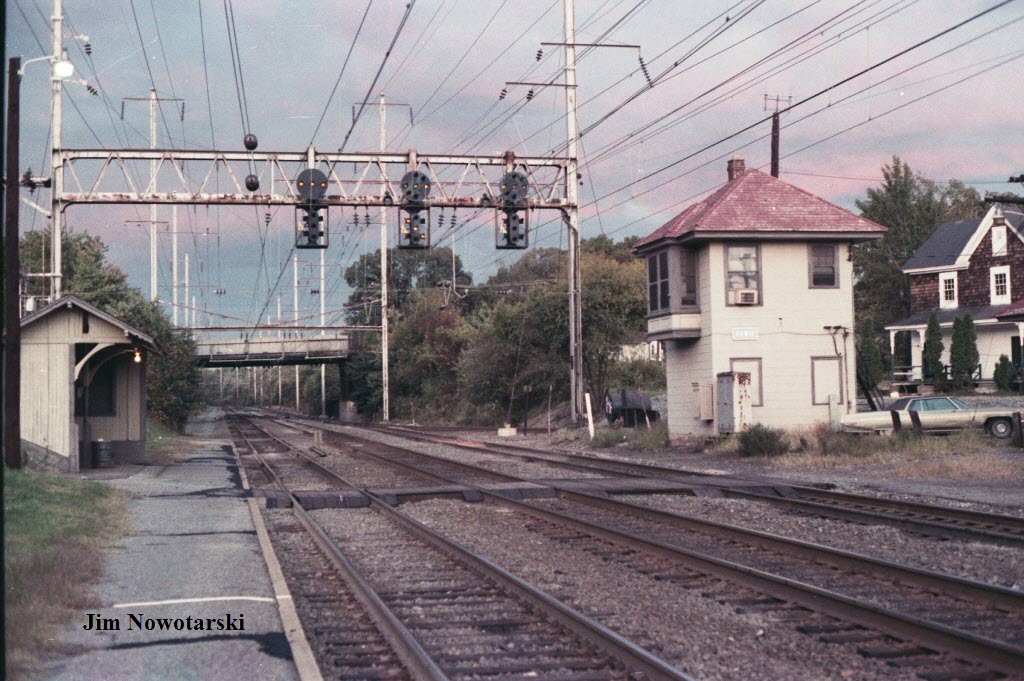

The pictures are courtesy Jim Nowotarski, and are from the mid 1970's.
Many thanks to Jim for sending these to me!
Notice the NB signals in Jim's pictures were moved south about 1500ft or so.
Bowie State MARC Station
GPS Coordinates: 39.020754, -76762070
This station replaced the "old" Bowie station in 1989.
Not many colleges can claim a train stop on their campus!

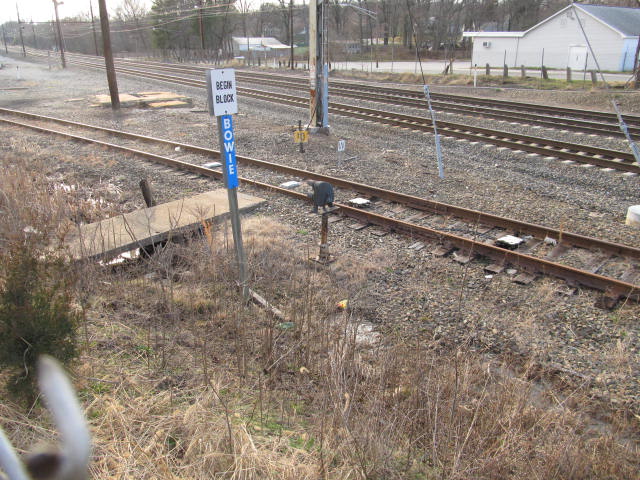

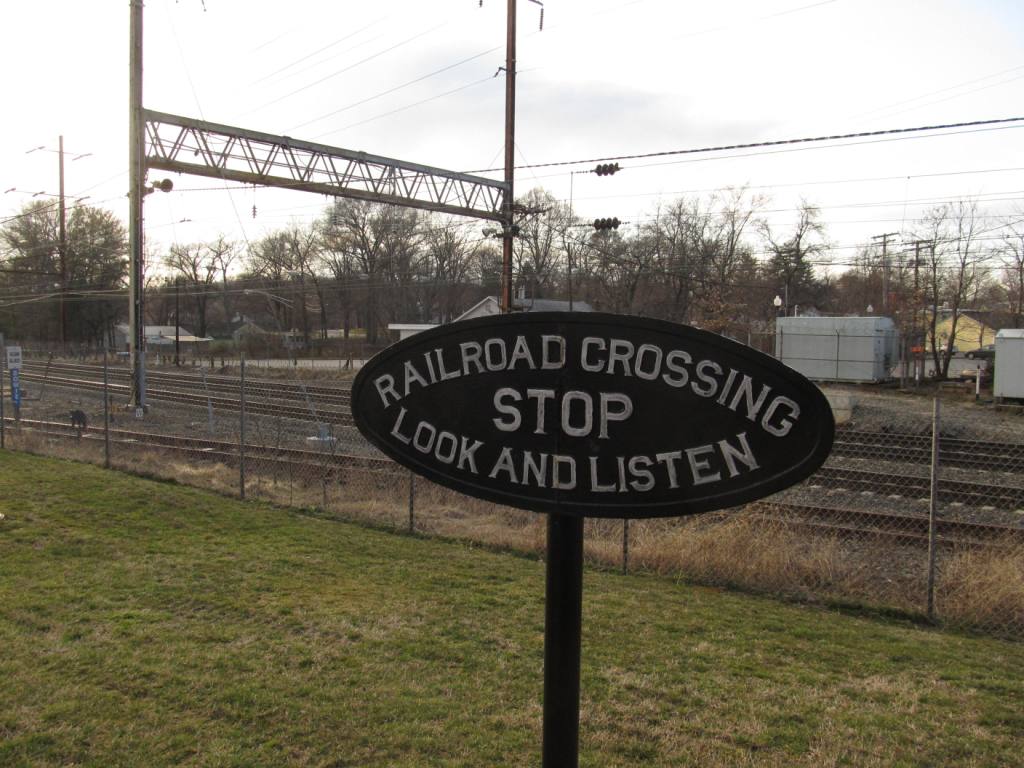

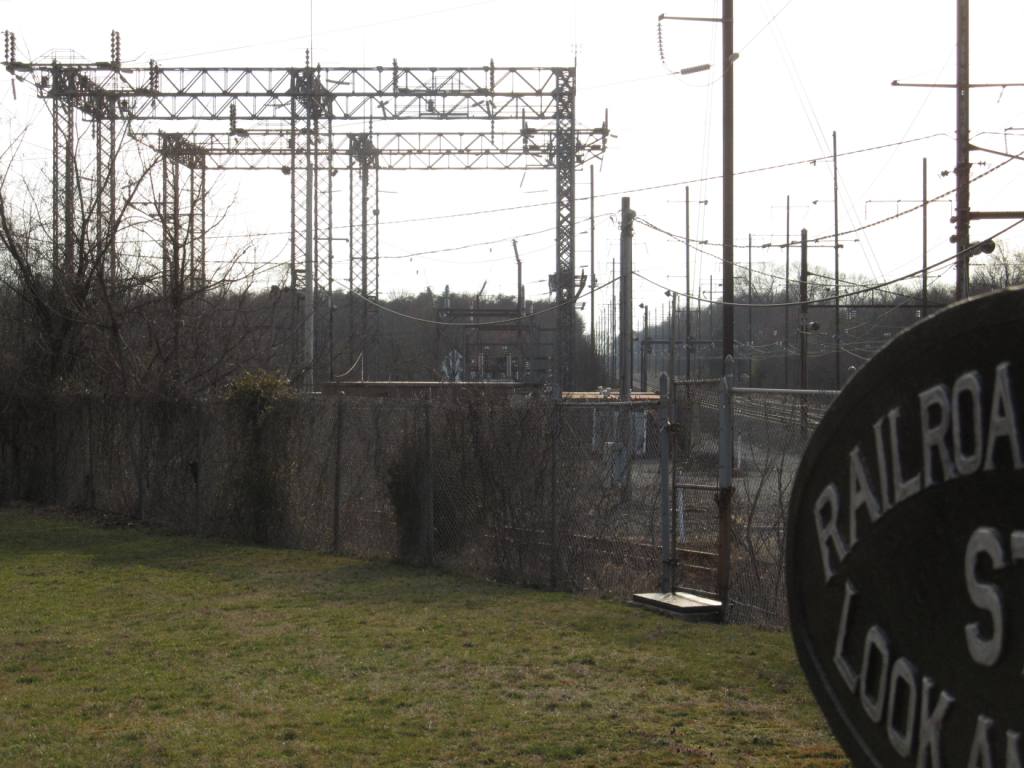

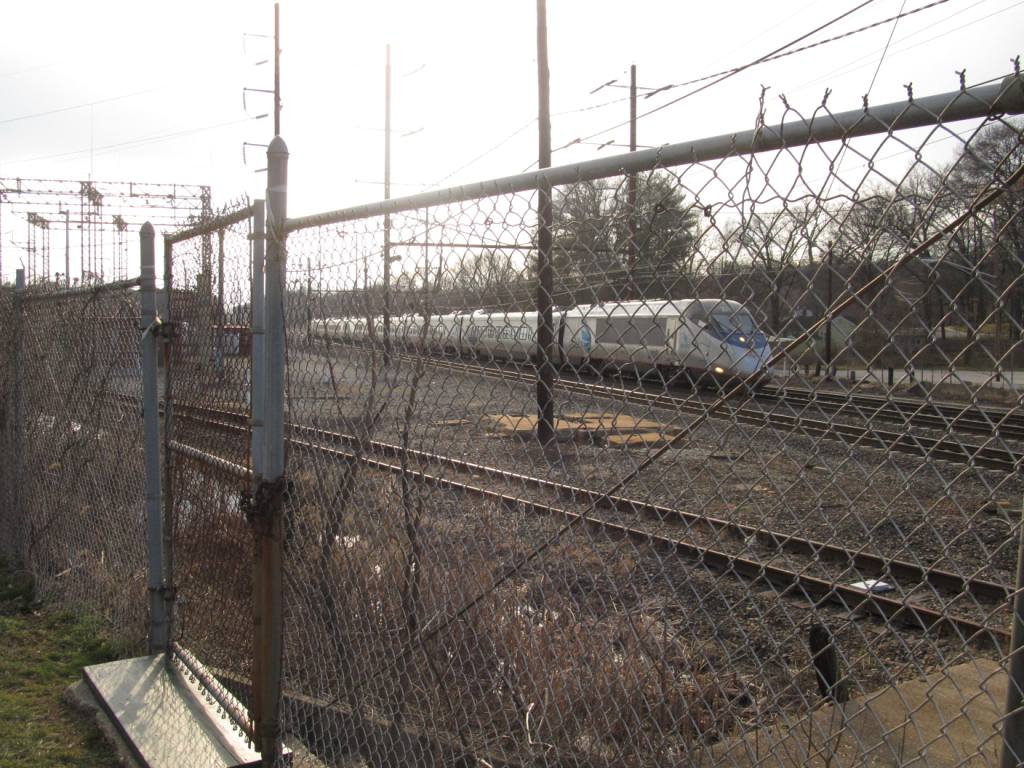

These are taken from the grounds of the museum.

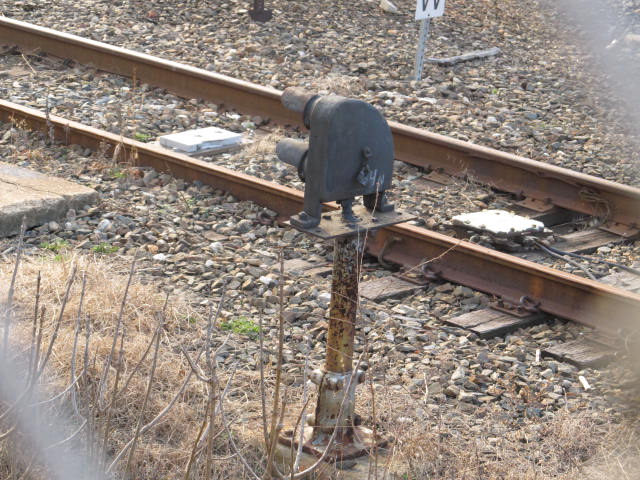

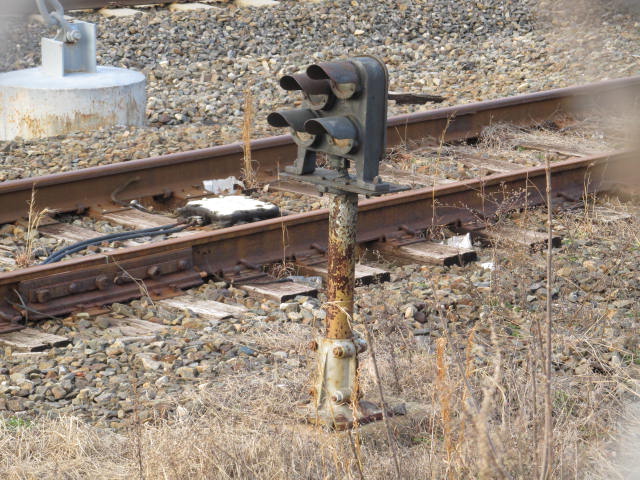

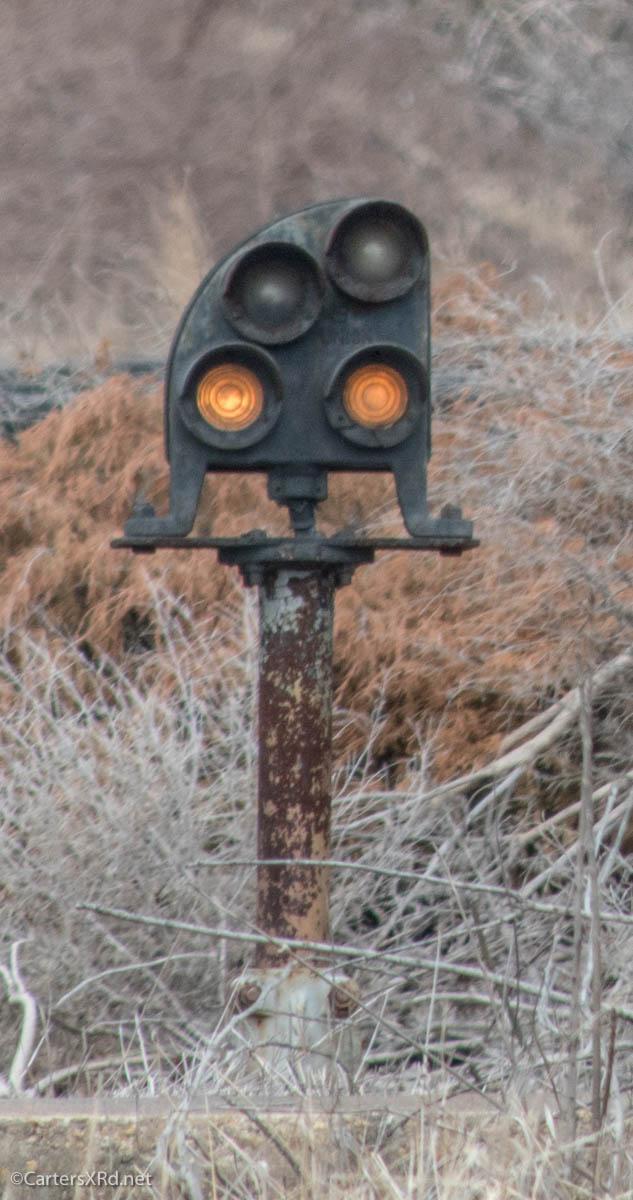

This dwarf PL signal controls the branch line traffic onto the NB mainline.
